Product Description
SHEEN's AF Series Silicone-free Thermal Pads (Non-silicone Thermal Pads) are renowned for their outstanding performance characteristics, which include:
◆ Excellent thermal conductivity ranging from 1.0 to 10.0 W/m·K.
◆ Available in various thicknesses from 0.5 to 5.0 mm.
◆ Free of siloxane, eliminating the risk of silicone oil bleed.
◆ Self-adhesive design for easy application and rework.
◆ Exceptional tensile strength and abrasion resistance.
◆ Customizable die-cut shapes to meet specific customer requirements.
◆ Excellent electrical insulation properties.
◆ Excellent flame resistance with a UL94 V-0 rating.
◆ Compliant with RoHS, Halogen-Free and REACH environmental & safety standards.
◆ Excellent thermal conductivity ranging from 1.0 to 10.0 W/m·K.
◆ Available in various thicknesses from 0.5 to 5.0 mm.
◆ Free of siloxane, eliminating the risk of silicone oil bleed.
◆ Self-adhesive design for easy application and rework.
◆ Exceptional tensile strength and abrasion resistance.
◆ Customizable die-cut shapes to meet specific customer requirements.
◆ Excellent electrical insulation properties.
◆ Excellent flame resistance with a UL94 V-0 rating.
◆ Compliant with RoHS, Halogen-Free and REACH environmental & safety standards.
【Applications】

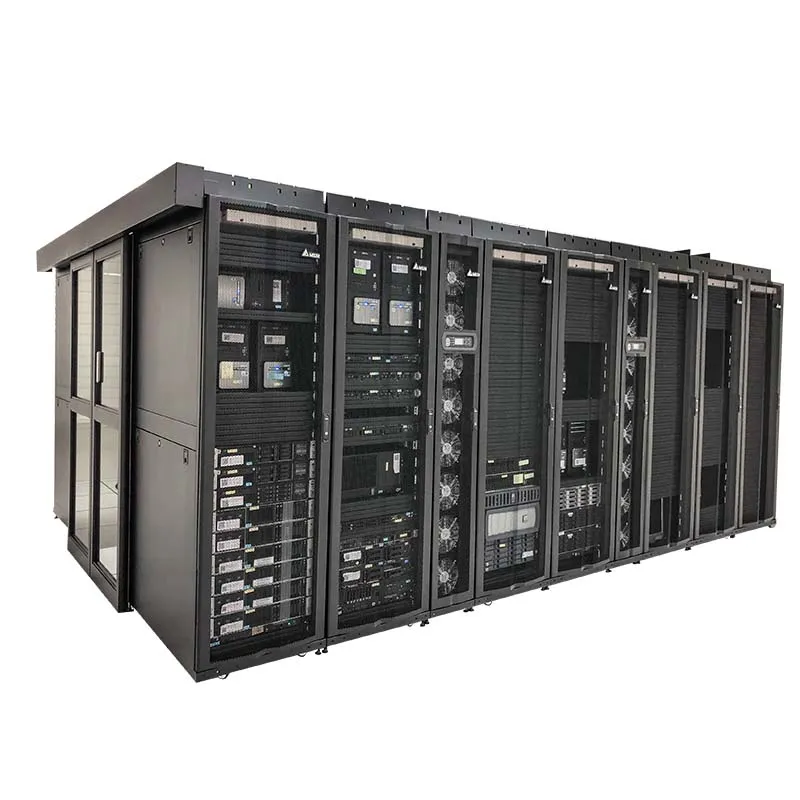

◆ Data Center◆ Network EWuipment: Switches, Routers, Optical Modules
◆ Computing EWuipment: Servers
◆ Storage EWuipment: Hard Drives, SSDs
Properties
| Properties | Unit | AF1000 | Test Method |
|---|---|---|---|
| Color | - | Gray | Visual |
| Thermal Conductivity | W/m·K | 10.0 | ASTM D5470 |
| Thermal Impedance (1mm,@50psi) | ℃*in2/W | ≤0.13 | ASTM D5470 |
| Thickness | mm | 1.0 ~ 2.0 | ASTM D374 |
| Standard Hardness | Shore 00 | 50~65 | ASTM D2240 |
| Density | g/cm3 | 3.3±0.2 | ASTM D792 |
| Dielectric Strength (@AC) | kV/mm | ≥4 | ASTM D149 |
| Dielectric Constant (@1MHz) | F/m | ≥6 | ASTM D150 |
| Volume Resistivity（@250V） | Ω·cm | 1*1012 | ASTM D257 |
| Operating Temp. | °C | -40 ~ 150 | - |
| Flame Rating | - | V-0 | UL94 |
| RoHS | - | PASS | IEC 62321 |
| Halogen | - | PASS | EN 14582 |
| REACH | - | PASS | EN 14372 |
【Product Specifications】
200*300 mm or die-cut parts【Storage & Transportation】
Store in a well-ventilated, cool, and dry area, away from open flames.This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】
Customized packaging according to customer requirements.【Shelf Life】
6 monthsAbout Us
