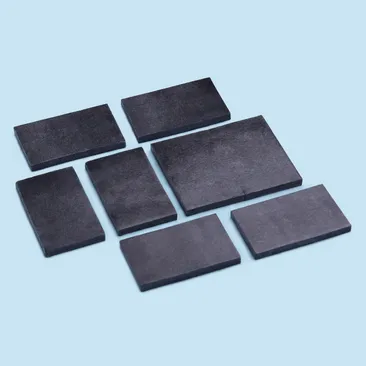

  • CSF 45 Carbon Fiber Thermal Pad 45.0W/mK
    • CSF 45 Carbon Fiber Thermal Pad 45.0W/mK CSF 45 Carbon Fiber Thermal Pad 45.0W/mK
    CSF 45 Carbon Fiber Thermal Pad 45.0W/mK CSF 45 Carbon Fiber Thermal Pad 45.0W/mK
    CSF 45 Carbon Fiber Thermal Pad 45.0W/mK CSF 45 Carbon Fiber Thermal Pad 45.0W/mK

    CSF 45 Carbon Fiber Thermal Pad 45.0W/mK

    Use Range:
    The Carbon Fiber Thermal Pad is very soft and well compressed, and is used to fill the interface of two articles, so that the air of the interface is discharged, and the heat conduction efficiency is improved. Thermal conductivity can reach 45.0W/mK

    Free Samples
    To request a sample of our Carbon Fiber Thermal Pads or inquire about more product information, please email us at [email protected] or Click here.


    Product Description

    CSF series Carbon Fiber Thermal Pads are renowned for their distinctive characteristics, which include:
    ◆ Exceptional thermal conductivity options ranging from 15 to 45 W/mK.
    ◆ Available in various thicknesses from 0.3 to 12.0 mm.
    ◆ Features natural tackiness for easy application and rework.
    ◆ High compressibility, softness, and elasticity suitable for low-pressure applications.
    ◆ Low silicone oil bleed.
    ◆ Customizable shapes per client requirements.
    ◆ Compliant with RoHS, Halogen, REACH environmental and safety standards.
    ◆ Excellent flexibility, resilience, and thermal stability.


    【Applications】

    ◆ 5G Base Station RRU
    ◆ Chips
    ◆ Capacitors
    ◆ Memory/Graphics Memory Particles
    ◆ Hard Drives
    ◆ Control Boards
    ◆ Shunts
    ◆ Relays


    Properties of CSF45



    Properties Unit CSF45 Test Method
    Color - Black Visual
    Thermal Conductivity W/m·K 45.0 ASTM D5470
    Thermal Impedance (1mm,@20psi) ℃*in2/W 0.07 ASTM D5470
    Thickness mm 0.3 ~ 12.0 ASTM D374
    Standard Hardness Shore 00 40/60±5 ASTM D2240
    Customized Hardness Shore 00 40 ~ 90 ASTM D2240
    Elongation % 10 ASTM D412
    Tensile Strength psi 30 ASTM D412
    Density g/cm3 2.6 ASTM D792
    Dielectric Strength (@AC) V/mm 100 ASTM D149
    Operating Temp. ℃ - 50 ~ 160 ASTM D1329
    RoHS - PASS IEC 62321
    Halogen - PASS EN 14582
    REACH - PASS EN 14372
