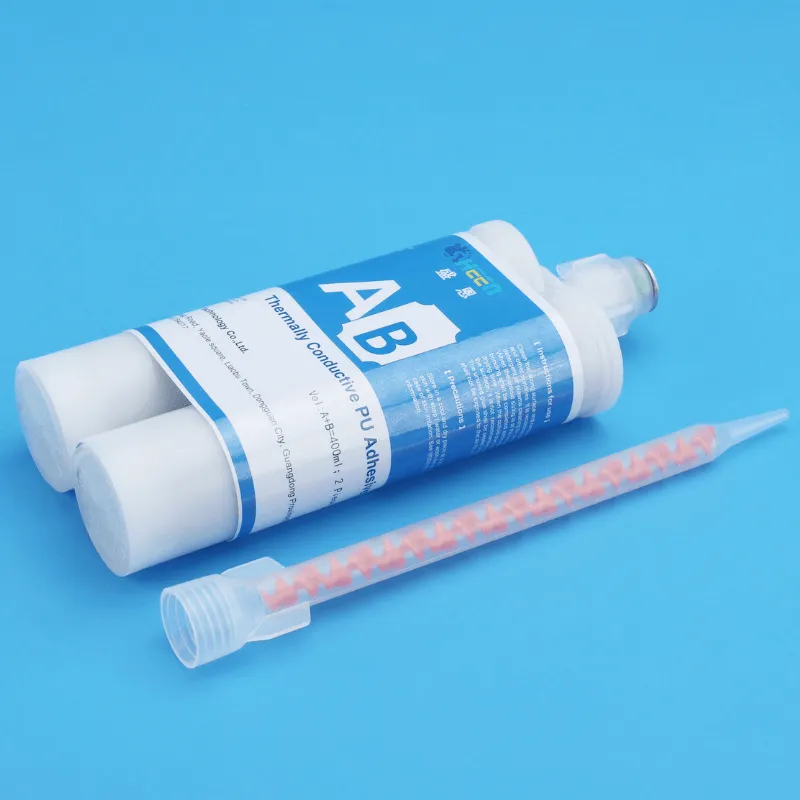

PU4500 Series Polyurethane Glue
Use Range:
SHEEN's PU4500 Series Thermal Conductive Polyurethane Adhesive Glue is also known as a polyurethane structural adhesive. It provides strong mechanical bonding, excellent thermal conductivity, and chemical resistance, making it ideal for applications requiring durable and efficient heat dissipation. Key applications include EV battery packs, high-power electronics, communication equipment, and LED lighting, where reliable adhesion and thermal management are critical.
To request a sample of our Thermal Conductive PU Adhesive or inquire about more product information, please email us at sales3@u-sheen.com or request a product sample.
◆ High-power electronics
◆ Communication equipment
◆ LED lighting
This product is non-toxic and should be stored and transported as a non-hazardous material.
Dongguan Sheen Electronic Technology Co., Ltd.
◆ Founded: 2008
◆ Team: 200 employees
◆ Facility: 20,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
Product Description
SHEEN's PU4500 Series Thermal Conductive PU Adhesive are renowned for their outstanding performance characteristics, which include:
◆ Thermal conductivity ranging from 1.0 to 2.0 W/m·K.
◆ Two-component adhesive, cures at room temperature or with heat.
◆ 100% solid content, non-toxic, no harmful emissions.
◆ High bonding strength, suitable for various substrates including aluminum and PET.
◆ Excellent chemical resistance.
◆ Thermal conductivity ranging from 1.0 to 2.0 W/m·K.
◆ Two-component adhesive, cures at room temperature or with heat.
◆ 100% solid content, non-toxic, no harmful emissions.
◆ High bonding strength, suitable for various substrates including aluminum and PET.
◆ Excellent chemical resistance.
【Applications】
◆ EV battery packs◆ High-power electronics
◆ Communication equipment
◆ LED lighting
Properties
| Model | / | PU4500-A-10AB | PU4500-A-15AB | PU4500-A-20AB |
|---|---|---|---|---|
| Properties | Unit | Value | Value | Value |
| Before Curing | ||||
| Main Component | / | A: Polyol; B: Isocyanate | A: Polyol; B: Isocyanate | A: Polyol; B: Isocyanate |
| Color | / | A: Gray; B: White | A: Gray; B: White | A: Black; B: White |
| Density | g/cm3 | A:1.67±0.3; B:2.02±0.3 | A:1.92±0.3; B:2.11±0.3 | A:2.3±0.3; B:2.6±0.3 |
| After Mixing | ||||
| Color | / | Gray | Gray | Black |
| Mix Ratio | / | 1:1 | 1:1 | 1:1 |
| Viscosity | / | Thixotropy | Thixotropy | Thixotropy |
| After Curing | ||||
| Hardness | Shore D | 55±5 | 70±5 | 70±10 |
| Density | g/cm3 | 1.87 | 1.87 | 2.45 |
| Tensile Strength | MPa | 17 | 16 | 14 |
| Elongation | % | 60 | 15 | 30 |
| Shear Strength (Al-Al) | MPa | 16 | 10 | 9.5 |
| Shear Strength After Aging (Al-Al) | MPa | 15 | 15 | - |
| Thermal Conductivity | W/m·K | 1.0 | 1.5 | 2.0 |
| Operating Temp. | ℃ | -40~85 | -40~85 | -40~85 |
| RoHS | PASS | IEC 62321 | IEC 62321 | IEC 62321 |
| Halogen | PASS | EN 14582 | EN 14582 | EN 14582 |
| REACH | PASS | EN 14372 | EN 14372 | EN 14372 |
【Storage & Transportation】
Store in a well-ventilated, cool, and dry area, away from open flames.This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】
● 50ml ● 400ml【Shelf Life】
6 monthsAbout Us
◆ Founded: 2008
◆ Team: 200 employees
◆ Facility: 20,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
