To request a sample of our Thermal Films or inquire about more product information, please email us at tina@u-sheen.com or Click here.
◆ MOSFETs
◆ Switching power supplies
◆ Power amplifiers
◆ Electric vehicle motor controllers
Dongguan Sheen Electronic Technology Co., Ltd.
◆ Founded: 2008
◆ Team: 110 employees
◆ Facility: 5,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
Product Description

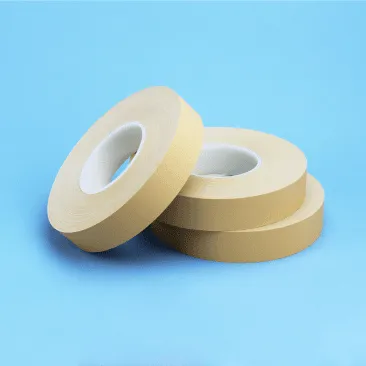

The SHEEN's SC Series Thermal Films are renowned for their distinctive characteristics, which include:
◆ Good thermal conductivity, with options ranging from 0.8 to 5.0 W/m·K.
◆ Optional fiberglass or polyimide film can be used as the reinforcement carrier.
◆ High mechanical strength and excellent electrical insulation properties.
◆ Customizable die-cut shapes to meet specific customer needs.
◆ Superior flame resistance, achieving a UL94 V-0 rating.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
◆ Good thermal conductivity, with options ranging from 0.8 to 5.0 W/m·K.
◆ Optional fiberglass or polyimide film can be used as the reinforcement carrier.
◆ High mechanical strength and excellent electrical insulation properties.
◆ Customizable die-cut shapes to meet specific customer needs.
◆ Superior flame resistance, achieving a UL94 V-0 rating.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ Uninterruptible Power Supplies (UPS)◆ MOSFETs
◆ Switching power supplies
◆ Power amplifiers
◆ Electric vehicle motor controllers
Properties
| Properties | Unit | SC1000FG | Test Method |
|---|---|---|---|
| Color | - | White | Visual |
| Reinforcement Carrier | - | Fiberglass | - |
| Thermal Conductivity | W/m·K | 3.5 | ASTM D5470 |
| Thickness | mm | 0.25 ~ 0.5 | ASTM D374 |
| Standard Hardness | Shore A | 90 | ASTM D2240 |
| Breakdown Voltage(@AC) | kV | ＞ 4.0 | ASTM D149 |
| Dielectric Constant (@1MHz) | - | 4.0 | ASTM D150 |
| Volume Resistivity | Ω·cm | 1*1011 | ASTM D257 |
| Operating Temp. | ℃ | -50 ~ 200 | - |
| Flame Rating | - | V-0 | UL94 |
| RoHS | - | PASS | IEC 62321 |
| Halogen | - | PASS | EN 14582 |
| REACH | - | PASS | EN 14372 |
About Us
◆ Founded: 2008
◆ Team: 110 employees
◆ Facility: 5,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
