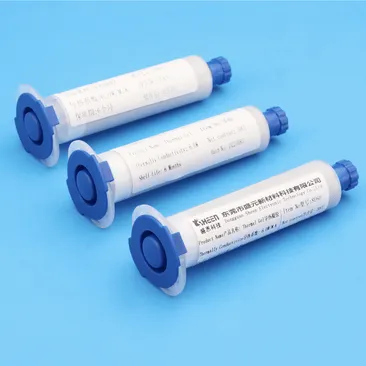

To request a sample of our one-component (1K) Thermal Gel (Thermal Liquid Gap Filler) or inquire about more product information, please email us at tina@u-sheen.com or Click here.
◆ Power Supply Units (PSUs)
◆ LED Modules
◆ Engine Control Units (ECUs)
◆ Gaming Consoles and Laptops
This product is non-toxic and should be stored and transported as a non-hazardous material.
Dongguan Sheen Electronic Technology Co., Ltd.
◆ Founded: 2008
◆ Team: 110 employees
◆ Facility: 5,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
Product Description
The SHEEN's SE Series one-component Thermal Gel are renowned for their distinctive characteristics, which include:
◆ Good thermal conductivity, available in options ranging from 2.0 to 10.0 W/m·K.
◆ High softness and compressibility, providing low assembly stress, ideal for delicate and sensitive electronic components.
◆ Excellent flame resistance, achieving a UL94 V-0 rating.
◆ Outstanding electrical insulation properties, with dielectric strength up to 8 kV/mm.
◆ No cracking or dripping, ensuring good stability in both high and low-temperature environments.
◆ Can be precisely controlled for thickness and shape using automated equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
◆ Good thermal conductivity, available in options ranging from 2.0 to 10.0 W/m·K.
◆ High softness and compressibility, providing low assembly stress, ideal for delicate and sensitive electronic components.
◆ Excellent flame resistance, achieving a UL94 V-0 rating.
◆ Outstanding electrical insulation properties, with dielectric strength up to 8 kV/mm.
◆ No cracking or dripping, ensuring good stability in both high and low-temperature environments.
◆ Can be precisely controlled for thickness and shape using automated equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ CPUs and GPUs◆ Power Supply Units (PSUs)
◆ LED Modules
◆ Engine Control Units (ECUs)
◆ Gaming Consoles and Laptops
Properties
| Properties | Unit | SE80 | Test Method |
|---|---|---|---|
| Color | - | Gray | Visual |
| Thermal Conductivity | W/m·K | 8.0 | ASTM D5470 |
| Thermal Impedance(@30psi) | ℃*in2/W | 0.05 | ASTM D5470 |
| Flow Rate(@30cc,90psi) | g/min | 30±5 | - |
| Minimum Interface Thickness | mm | 0.17 | - |
| Density | g/cc | 3.4 | Helium Pycnometry |
| Outgassing | % | < 0.5 | ASTM E595 |
| Dielectric Strength (@AC) | kV/mm | > 6.0 | ASTM D149 |
| Dielectric Constant (@1MHz) | - | 8.0 | ASTM D150 |
| Volume Resistivity | Ω·cm | > 1014 | ASTM D257 |
| Operating Temp. | ℃ | -50 ~ 150 | - |
| Flame Rating | - | V-0 | UL94 |
| RoHS | - | PASS | IEC 62321 |
| Halogen | - | PASS | EN 14582 |
| REACH | - | PASS | EN 14372 |
【Storage & Transportation】
Store in a well-ventilated, cool, and dry place, away from open flames.This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】
● 30cc ● 300cc【Shelf Life】
12 monthsAbout Us
◆ Founded: 2008
◆ Team: 110 employees
◆ Facility: 5,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
