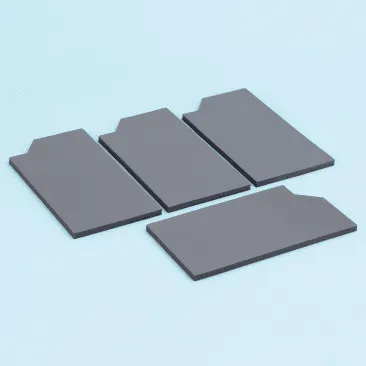

Flexible Thermal Gap Pad Filling Gaps Between Electronics And Heat Sources

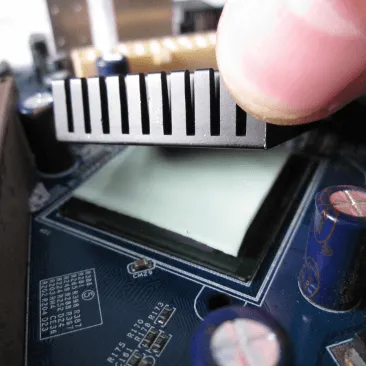

Non-Silicone Thermal Gap Pad With Excellent Electrical Insulation

High Performance Thermal Gap Pad Suitable For CPUs, GPUs, And Power Modules

Thermal Pad SF1200 12.0W/mK

Use Range:
SF1200 thermal pad are used for filling the two contact surfaces. They are ultra soft and have good resilience, so effectively exclude air from the contact interface. The products are naturally tacky, can be die-cut into various shapes, easy to operate. The thermal conductivity can reach 12.0 W/m·K.

Free Samples

Detailed Information

To request a sample of our Thermal Pads or inquire about more product information, please email us at sales3@u-sheen.com or request a product sample.

Product Description

SHEEN's SF Series Silicone Thermal Pads are renowned for their outstanding performance characteristics,which include:
◆ Excellent thermal conductivity, with a wide range from 1.5 to 15.0 W/m·K.
◆ Available in various thicknesses from 0.3 to 10.0 mm.
◆ Highly compressible and soft, minimizing assembly stress and protecting sensitive, fragile components.
◆ Self-adhesive for easy application and rework.
◆ Customizable into die-cut shapes to meet specific design requirements.
◆ Exceptional tensile strength and abrasion resistance.
◆ Excellent electrical insulation properties.
◆ Superior flame resistance, achieving a UL94 V-0 rating.
◆ Low silicone oil bleed and low siloxane volatility, minimizing impact on surrounding equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.

【Applications】

◆ Electric Vehicle Battery Management System
◆ CPU/GPU Chips
◆ Capacitors
◆ Memory/VRAM particles
◆ Control boards
◆ Splitters
◆ Relays

Properties

Properties	Unit	SF1200	Test Method
Color	-	Gray	Visual
Thermal Conductivity	W/m·K	12.0	ASTM D5470
Thermal Impedance (1mm,@30psi)	℃*in²/W	0.15	ASTM D5470
Thickness	mm	0.5 ~ 5.0	ASTM D374
Standard Hardness	Shore 00	40/60	ASTM D2240
Customized Hardness	Shore 00	30 ~ 80	ASTM D2240
Elongation	%	10	ASTM D412
Tensile Strength	psi	10	ASTM D412
Density	g/cm³	3.5 ± 0.3	ASTM D792
Dielectric Strength (@AC)	kV/mm	> 6	ASTM D149
Dielectric Constant (@1MHz)	-	≥ 6	ASTM D150
Volume Resistivity	Ω·cm	1*10¹¹	ASTM D257
Operating Temp.	°C	-40 ~ 125	-
Flame Rating	-	V-0	UL94
RoHS	-	PASS	IEC 62321
Halogen	-	PASS	EN 14582
REACH	-	PASS	EN 14372

【Product Specifications】

200*300 mm or die-cut parts

【Storage & Transportation】

Store in a well-ventilated, cool, and dry area, away from open flames.
This product is non-toxic and should be stored and transported as a non-hazardous material.

【Packaging】

Customized packaging according to customer requirements.

【Shelf Life】

The shelf life is 6 months.
