Product Description

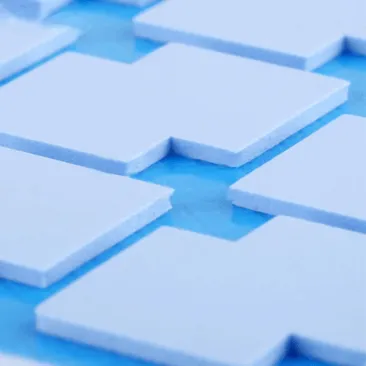

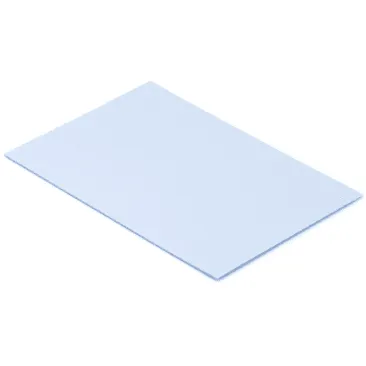

The SHEEN's SF Series Silicone Thermal Pads are renowned for their distinctive characteristics, which include:
◆ Good thermal conductivity, with options ranging from 1.5 to 15.0 W/m·K.
◆ Available in various thicknesses from 0.3 to 10.0 mm.
◆ Highly compressible, soft, reducing assembly stress and protecting sensitive and fragile components.
◆ Self-adhesive for easy application and rework.
◆ Customizable die-cut shapes to meet specific customer needs.
◆ Exceptional tensile strength and abrasion resistance.
◆ Excellent electrical insulation properties.
◆ Superior flame resistance, achieving a UL94 V-0 rating.
◆ Low silicone oil bleed and low siloxane volatility, minimizing impact on equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
◆ Good thermal conductivity, with options ranging from 1.5 to 15.0 W/m·K.
◆ Available in various thicknesses from 0.3 to 10.0 mm.
◆ Highly compressible, soft, reducing assembly stress and protecting sensitive and fragile components.
◆ Self-adhesive for easy application and rework.
◆ Customizable die-cut shapes to meet specific customer needs.
◆ Exceptional tensile strength and abrasion resistance.
◆ Excellent electrical insulation properties.
◆ Superior flame resistance, achieving a UL94 V-0 rating.
◆ Low silicone oil bleed and low siloxane volatility, minimizing impact on equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.

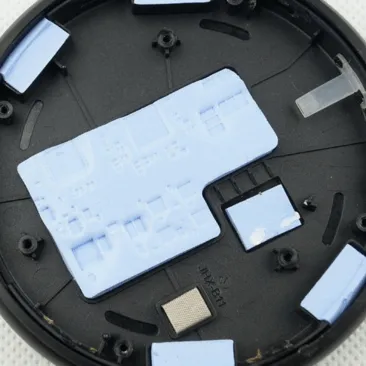

【Applications】
◆ Electric Vehicle Battery Management System◆ CPU/GPU Chips
◆ Capacitors
◆ Memory/VRAM particles
◆ Control boards
◆ Splitters
◆ Relays
Properties
| Properties | Unit | SF500 | Test Method |
|---|---|---|---|
| Color | - | Blue | Visual |
| Thermal Conductivity | W/m·K | 3.0 | ASTM D5470 |
| Thermal Impedance (1mm,@30psi) | ℃*in2/W | 0.45 | ASTM D5470 |
| Thickness | mm | 0.3 ~ 10.0 | ASTM D374 |
| Standard Hardness | Shore 00 | 40/60 | ASTM D2240 |
| Customized Hardness | Shore 00 | 20 ~ 90 | ASTM D2240 |
| Elongation | % | 40 | ASTM D412 |
| Tensile Strength | psi | 30 | ASTM D412 |
| Density | g/cm3 | 2.9 | ASTM D792 |
| Dielectric Strength (@AC) | kV/mm | > 8 | ASTM D149 |
| Dielectric Constant (@1MHz) | - | 7.5 | ASTM D150 |
| Volume Resistivity | Ω·cm | 1*1013 | ASTM D257 |
| Operating Temp. | °C | -50 ~ 200 | - |
| Flame Rating | - | V-0 | UL94 |
| RoHS | - | PASS | IEC 62321 |
| Halogen | - | PASS | EN 14582 |
| REACH | - | PASS | EN 14372 |
