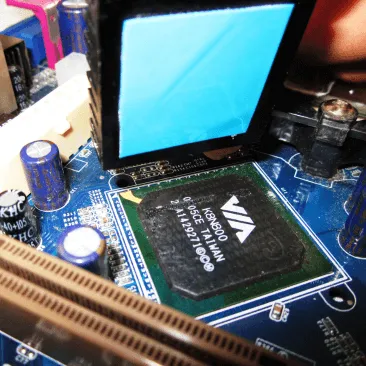

    Thin Thermal Pad Ideal For Compact And Layered Electronic Assemblies Thin Thermal Pad Ideal For Compact And Layered Electronic Assemblies

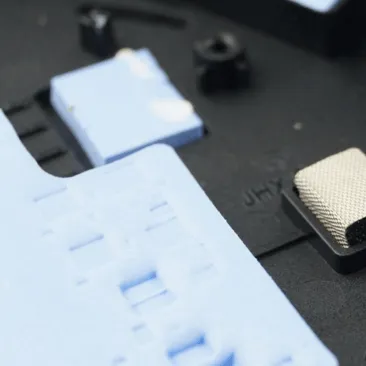

    Eco-Friendly Thermal Pad With Minimal Environmental Impact And RoHS Compliance Eco-Friendly Thermal Pad With Minimal Environmental Impact And RoHS Compliance
    Thermal Pad With High Surface Adhesion Ensuring Stable Placement Thermal Pad With High Surface Adhesion Ensuring Stable Placement

    Thermal Pad SF500FG 3.0W/mK

    Use Range:
    SF500FG 3.0 W/m·K thermal pad are used for filling the two contact surfaces. They are fiberglass reinforced and have good resilience, so effectively exclude air from the contact interface. The products are naturally tacky, can be die-cut into various shapes, easy to operate.

    Free Samples
    To request a sample of our Thermal Pads or inquire about more product information, please email us at tina@u-sheen.com or Click here.


    Product Description

    The SHEEN's SF Series Silicone Thermal Pads are renowned for their distinctive characteristics, which include:
    ◆ Good thermal conductivity, with options ranging from 1.5 to 15.0 W/m·K.
    ◆ Available in various thicknesses from 0.3 to 10.0 mm.
    ◆ Highly compressible, soft, reducing assembly stress and protecting sensitive and fragile components.
    ◆ Self-adhesive for easy application and rework.
    ◆ Customizable die-cut shapes to meet specific customer needs.
    ◆ Exceptional tensile strength and abrasion resistance.
    ◆ Excellent electrical insulation properties.
    ◆ Superior flame resistance, achieving a UL94 V-0 rating.
    ◆ Low silicone oil bleed and low siloxane volatility, minimizing impact on equipment.
    ◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.


    【Applications】

    ◆ Electric Vehicle Battery Management System
    ◆ CPU/GPU Chips
    ◆ Capacitors
    ◆ Memory/VRAM particles
    ◆ Control boards
    ◆ Splitters
    ◆ Relays


    Properties

    Properties Unit SF500FG Test Method
    Color - Blue Visual
    Reinforcement Carrier - Fiberglass -
    Thermal Conductivity W/m·K 3.0 ASTM D5470
    Thermal Impedance (1mm,@30psi) ℃*in2/W 0.45 ASTM D5470
    Thickness mm 0.3 ~ 10.0 ASTM D374
    Standard Hardness Shore 00 70±5 ASTM D2240
    Elongation % 10 ASTM D412
    Tensile Strength psi ≥150 ASTM D412
    Compressibility (1mm,@30psi) % 20 -
    Density g/cm3 2.9 ASTM D792
    Dielectric Strength (@AC) kV/mm > 5 ASTM D149
    Dielectric Constant (@1MHz) - 5.6 ASTM D150
    Volume Resistivity Ω·cm 1*1013 ASTM D257
    Operating Temp. °C -50 ~ 200 -
    Flame Rating - V-0 UL94
    RoHS - PASS IEC 62321
    Halogen - PASS EN 14582
    REACH - PASS EN 14372
