To request a sample of our Thermal Pads or inquire about more product information, please email us at [email protected] or Click here.
◆ CPU/GPU Chips
◆ Capacitors
◆ Memory/VRAM particles
◆ Control boards
◆ Splitters
◆ Relays
Dongguan Sheen Electronic Technology Co., Ltd.
◆ Founded: 2008
◆ Team: 110 employees
◆ Facility: 5,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
Product Description

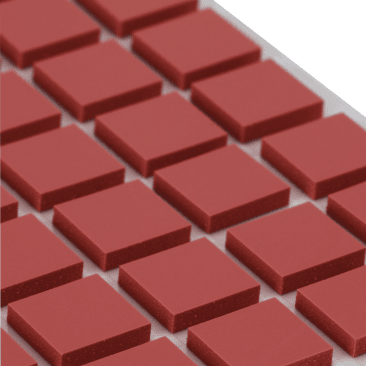

The SHEEN's SF Series Silicone Thermal Pads are renowned for their distinctive characteristics, which include:
◆ Good thermal conductivity, with options ranging from 1.5 to 15.0 W/m·K.
◆ Available in various thicknesses from 0.3 to 10.0 mm.
◆ Highly compressible, soft, reducing assembly stress and protecting sensitive and fragile components.
◆ Self-adhesive for easy application and rework.
◆ Customizable die-cut shapes to meet specific customer needs.
◆ Exceptional tensile strength and abrasion resistance.
◆ Excellent electrical insulation properties.
◆ Superior flame resistance, achieving a UL94 V-0 rating.
◆ Low silicone oil bleed and low siloxane volatility, minimizing impact on equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
◆ Good thermal conductivity, with options ranging from 1.5 to 15.0 W/m·K.
◆ Available in various thicknesses from 0.3 to 10.0 mm.
◆ Highly compressible, soft, reducing assembly stress and protecting sensitive and fragile components.
◆ Self-adhesive for easy application and rework.
◆ Customizable die-cut shapes to meet specific customer needs.
◆ Exceptional tensile strength and abrasion resistance.
◆ Excellent electrical insulation properties.
◆ Superior flame resistance, achieving a UL94 V-0 rating.
◆ Low silicone oil bleed and low siloxane volatility, minimizing impact on equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ Electric Vehicle Battery Management System◆ CPU/GPU Chips
◆ Capacitors
◆ Memory/VRAM particles
◆ Control boards
◆ Splitters
◆ Relays
Properties
| Properties | Unit | SF600 | Test Method |
|---|---|---|---|
| Color | - | Red Brown | Visual |
| Thermal Conductivity | W/m·K | 5.0 | ASTM D5470 |
| Thermal Impedance (1mm,@30psi) | ℃*in2/W | 0.35 | ASTM D5470 |
| Thickness | mm | 0.5 ~ 5.0 | ASTM D374 |
| Standard Hardness | Shore 00 | 40/60±5 | ASTM D2240 |
| Customized Hardness | Shore 00 | 30 ~ 90 | ASTM D2240 |
| Elongation | % | 30 | ASTM D412 |
| Tensile Strength | psi | 30 | ASTM D412 |
| Density | g/cm3 | 3.2 | ASTM D792 |
| Dielectric Strength (@AC) | kV/mm | > 8 | ASTM D149 |
| Dielectric Constant (@1MHz) | - | 9.0 | ASTM D150 |
| Volume Resistivity | Ω·cm | 1*1013 | ASTM D257 |
| Operating Temp. | °C | -50 ~ 200 | - |
| Flame Rating | - | V-0 | UL94 |
| RoHS | - | PASS | IEC 62321 |
| Halogen | - | PASS | EN 14582 |
| REACH | - | PASS | EN 14372 |
