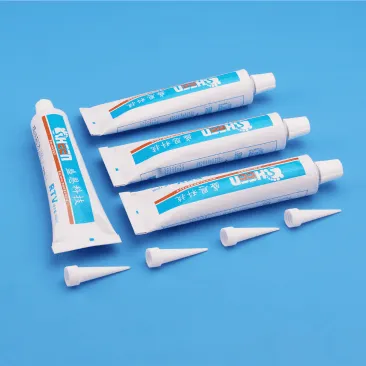

TIV800-26 Thermal Adhesive 2.6W/mK
Use Range:
TIV800-26 2.6 W/m·K RTV Thermal Conductive Adhesive is a single-component adhesive primarily made of silicone resin. It features excellent insulation, thermal conductivity, and bonding performance, making it ideal for use between heat sinks and heating elements.
To request a sample of our RTV Thermal Conductive Adhesive (1K) or inquire about more product information, please email us at sales3@u-sheen.com or request a product sample.
◆ Power Supply Units (PSUs)
◆ LED Modules
◆ Engine Control Units (ECUs)
This product is non-toxic and should be stored and transported as a non-hazardous material.
Dongguan Sheen Electronic Technology Co., Ltd.
◆ Founded: 2008
◆ Team: 200 employees
◆ Facility: 20,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
Product Description
SHEEN's TIV800 Series RTV Thermal Conductive Adhesive are renowned for their outstanding performance characteristics, which include:
◆ Excellent thermal conductivity, available in options ranging from 1.0 to 2.0 W/m·K.
◆ High bonding performance.
◆ Good stability, long-term high temperature resistance, and no swelling.
◆ Suitable for automated dispensing equipment operation.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
◆ Excellent thermal conductivity, available in options ranging from 1.0 to 2.0 W/m·K.
◆ High bonding performance.
◆ Good stability, long-term high temperature resistance, and no swelling.
◆ Suitable for automated dispensing equipment operation.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ Communication Devices◆ Power Supply Units (PSUs)
◆ LED Modules
◆ Engine Control Units (ECUs)
Properties
| Properties | Unit | TIV800-26 | Test Method |
|---|---|---|---|
| Thermal Conductivity | W/m·K | 2.6 | ASTM D5470 |
| Color | - | White | Visual |
| Main Component | - | Silicone Resin | - |
| Appearance | - | Semi-flowable | - |
| Tack-Free Time (@25℃) | min | 1～5 | - |
| Full Cure Time (@25℃) | h | ≤30 | - |
| Bond Strength | Mpa | ≥1.5 | - |
| Density | g/cm3 | 2.1~2.5 | ASTM D792 |
| Hardness | Shore A | 40～60 | ASTM D2240 |
| Operating Temp. | ℃ | -50~200 | - |
| Dielectric Strength (@AC) | kV/mm | 20 | ASTM D149 |
| Volume Resistivity | Ω·cm | 3.0*1013 | ASTM D257 |
| RoHS | - | PASS | IEC 62321 |
| Halogen | - | PASS | EN14582 |
| REACH | - | PASS | EN14372 |
【Storage & Transportation】
Store in a well-ventilated, cool, and dry area, away from open flames.This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】
● 120ml ● 300ml【Shelf Life】
6 monthsAbout Us
◆ Founded: 2008
◆ Team: 200 employees
◆ Facility: 20,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
