5W/mk high thermal conductivity insulating sheet

There is a gap between the heat source and the radiator or the heat sink. Even if two smooth and flat surfaces are not fully attached, it is necessary to use a thermally conductive gap filler to fill the gap between the two to eliminate the air at the interface and reduce contact. Thermal resistance improves the efficiency of heat conduction. However, in the face of equipment or machines that require high voltage such as large motors, trams, airplanes, and precision instruments, the breakdown voltage of ordinary thermal conductive silicone sheets is obviously insufficient.

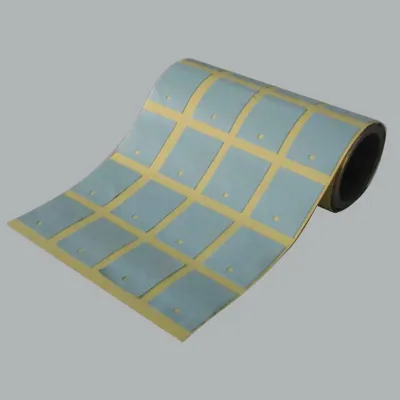

The high thermal conductivity insulating sheet is a kind of organic silicon polymer elastomer reinforced with glass fiber as the base material. This kind of insulating sheet can effectively reduce the thermal resistance between the electronic component and the radiator, and is electrically insulated, with high breakdown voltage strength, good thermal conductivity, tear resistance, etc., and can effectively avoid leakage , Breakdown and other accidents. At the same time, the heat-conducting insulating sheet has strong temperature resistance to avoid aging and deterioration due to long-term overheating.

In addition to the extremely high breakdown voltage value of the high thermal conductivity insulating sheet, its thickness is also very thin, which can meet the current development needs of miniaturization and multi-function. The higher the power of electronic components, the heat emitted is also High thermal conductivity is indispensable. SC2000FG high thermal conductivity insulating sheet has a thermal conductivity of 5W/MK. It has passed a 1000-hour reliability test. The breakdown voltage is greater than 4000V and the thickness is 0.25-0.5mm, welcome to consult.
