Why Can Silicone-Free Thermal Pads Solve PDU Heat Dissipation Challenges So Effectively?
Why Can Silicone-Free Thermal Pads Solve PDU Heat Dissipation Challenges So Effectively?
Date：2025-08-06

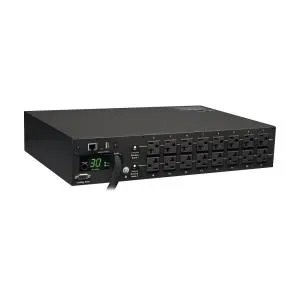

In data center operations, the heat dissipation issues of Power Distribution Units (PDUs) often feel like a "stumbling block": even after installing thermal pads, modules still overheat to the point of "glowing red"; switching to higher-spec models doesn’t prevent equipment failures from "knocking on the door." The problem isn’t "insufficient performance" but rather the wrong material choice—silicone-free, low-hardness thermal pads are quietly putting an end to PDU heat dissipation woes.
Why Do Silicone Thermal Pads "Fail to Adapt" in PDUs?
The hidden flaws of traditional silicone thermal pads lie in the details. Their core component, silicone oil, gradually seeps out in the high-temperature environment of PDUs, acting like an "invisible glue" that coats circuit boards and metal contacts. This film not only attracts dust, increasing contact resistance, but also slowly corrodes metal interfaces, leading over time to unstable currents, short circuits, and tripping. Another issue is that silicone pads, designed for durability, tend to be overly hard (Shore 00 60 or higher), making it difficult to conform to the uneven surfaces of PDU components. While they may appear "securely attached," tiny gaps remain, trapping heat and rendering them ineffective.
How Do Silicone-Free Thermal Pads Make PDU Heat Dissipation "Reliable"?

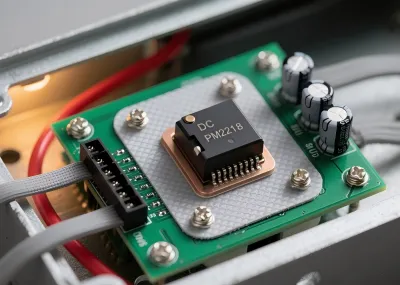

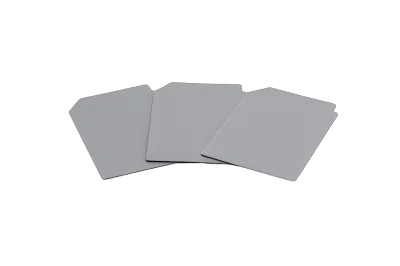

Silicone-free thermal pads succeed in PDU applications by addressing the root causes. First, their "zero-silicone formula" replaces traditional silicone oil with rubber or specialized resins, eliminating the risk of silicone migration. Even under extreme temperature cycles (-40°C to 120°C), the material remains stable, releasing no volatile substances that could harm capacitors or metal contacts inside the PDU. Second, their "low-hardness design" (Shore 00 30-50) allows them to deform easily under light pressure, filling microscopic gaps and scratches like a "soft gel" with over 95% surface contact. This boosts heat transfer efficiency by more than 30% compared to silicone pads of the same grade. Crucially, their thermal conductivity is precisely tailored to PDU needs—sufficient to prevent heat buildup without overshooting requirements or inflating costs, achieving the ideal balance of "enough without excess."
Selection Tips: Which Details Maximize Heat Dissipation "Effectiveness"?
Choosing the right silicone-free thermal pad is just the beginning; installation details matter equally. Thickness must be "custom-fit" to component gaps, typically 0.2mm to 3mm in PDUs, with deviations not exceeding 0.5mm—too thick risks damaging components, while too thin leaves gaps. Dielectric strength testing is a "must" (usually ≥5kV/mm), as PDUs handle high voltages, and pads must avoid breakdown risks. Before installation, clean contact surfaces thoroughly to remove grease and dust; these contaminants act like "insulating layers," undermining even the best materials.
From "Frequent Failures" to "Stable Performance": What Makes Non-silicone Thermal Pads So Appealing?
A data center retrofit offers compelling evidence. Previously, silicone pads caused PDU contact oxidation within a year, triggering frequent tripping and downtime. After switching to silicone-free pads, the "zero-migration" property protected contacts, while the low-hardness design improved heat dissipation by 30%, lowering module temperatures by 8–12°C. Over the next six months, heat- and contact-related failures dropped to "zero." This exemplifies the core value of silicone-free pads: they don’t just address surface-level heat issues but also eliminate root causes through "silicone-free + precision fit" design.
If PDU heat dissipation is a headache for you, consider rethinking material choices. Products like Sheen’sAF Series Low-Hardness Silicone-Free Thermal Pads, with their "no migration, high conformity" properties, safeguard equipment. For data centers, stable operation with fewer failures is the most practical "heat dissipation solution."
