To request a sample of our two-component (2K) Thermal Gel (Thermal Liquid Gap Filler) or inquire about more product information, please email us at [email protected] or Click here.
◆ Power Supply Units (PSUs)
◆ LED Modules
◆ Engine Control Units (ECUs)
◆ Gaming Consoles and Laptops
Dongguan Sheen Electronic Technology Co., Ltd.
◆ Founded: 2008
◆ Team: 110 employees
◆ Facility: 5,000㎡
◆ Focus: R&D and production of functional materials
◆ Strengths: Efficient, collaborative team
◆ Achievements: Key supplier to leading global manufacturers
◆ Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆ Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
Product Description

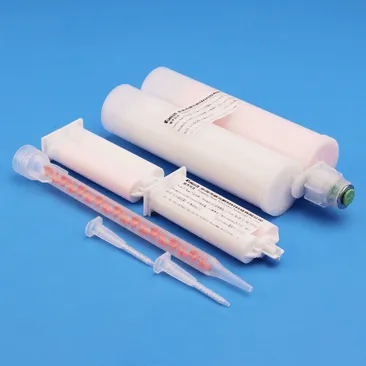

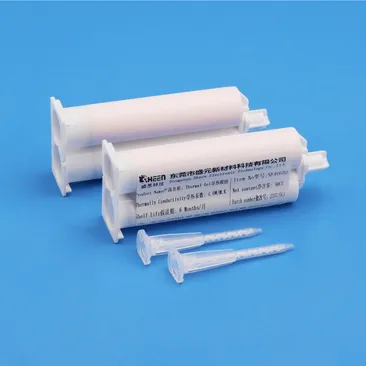

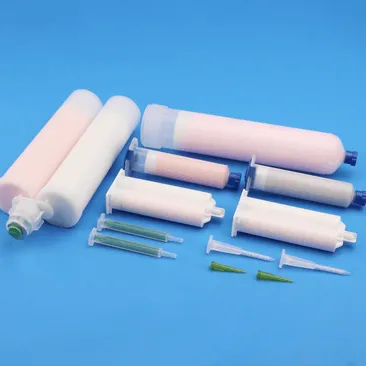

The SHEEN's SE Series two-component Thermal Gel are renowned for their distinctive characteristics, which include:
◆ Good thermal conductivity, available in options ranging from 2.0 to 8.0 W/m·K.
◆ Soft and elastic after curing, maintaining the required thickness and providing shock absorption.
◆ High electrical insulation, with dielectric strength up to 8 kV/mm.
◆ Excellent flame resistance, achieving a UL94 V-0 rating.
◆ Curing time adjustable based on temperature.
◆ Two-component structure for easy storage.
◆ Can be precisely controlled for thickness and shape using automated equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
◆ Good thermal conductivity, available in options ranging from 2.0 to 8.0 W/m·K.
◆ Soft and elastic after curing, maintaining the required thickness and providing shock absorption.
◆ High electrical insulation, with dielectric strength up to 8 kV/mm.
◆ Excellent flame resistance, achieving a UL94 V-0 rating.
◆ Curing time adjustable based on temperature.
◆ Two-component structure for easy storage.
◆ Can be precisely controlled for thickness and shape using automated equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ CPUs and GPUs◆ Power Supply Units (PSUs)
◆ LED Modules
◆ Engine Control Units (ECUs)
◆ Gaming Consoles and Laptops
Properties
| Properties | Unit | SE300AB | Test Method |
|---|---|---|---|
| Thermal Conductivity | W/m·K | 3.0 | ASTM D5470 |
| Flow Rate(@50cc,90psi) | g/min | 20±5 | - |
| Color Before Curing | - | Part A: White Part B: Pink |
Visual |
| Density | g/cc | 3.0 | Helium Pycnometry |
| Mix Ratio | - | 1:1 | - |
| Color After Curing | - | Pink | Visual |
| Hardness After Curing | Shore 00 | 55±10 | ASTM D2240 |
| Tack-Free Time (@25℃) | min | 30 | - |
| Full Cure Time (@25℃) | h | 1 | - |
| Full Cure Time (@100℃) | min | 5 | - |
| Minimum Interface Thickness | mm | 0.10 | - |
| Shelf Life (@25℃) | months | 6 | - |
| Operating Temp. | ℃ | -50 ~ 150 | - |
| Dielectric Strength (@AC) | kV/mm | > 8 | ASTM D149 |
| Dielectric Constant (@1MHz) | - | 6.5 | ASTM D150 |
| Volume Resistivity | Ω·cm | >1013 | ASTM D257 |
| Coefficient of Thermal Expansion | ppm/K | 175 | ASTM E831 |
| Flame Rating | - | V-0 | UL94 |
| RoHS | - | PASS | IEC 62321 |
| Halogen | - | PASS | EN 14582 |
| REACH | - | PASS | EN 14372 |
