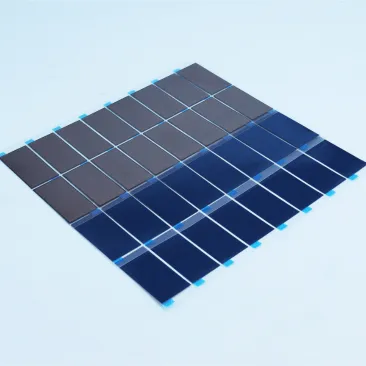

SR600-10 Graphite Sheet

Use Range:
The SR600-10 product has a unique layered structure and crystal orientation, and has good Thermal conductive in the planar direction. This model is made of natural graphite, which can die-cut various shapes and wrap the edges to prevent the graphite from falling off and cause poor circuits.

Free Samples

Detailed Information

Product Description

The SR600-10 product has a unique layered structure and crystal orientation, and has good Thermal conductive in the planar direction. This model is made of natural graphite, which can die-cut various shapes and wrap the edges to prevent the graphite from falling off and cause poor circuits.

Applications

◆ Mobile phone
◆ Notebook
◆ TV
◆ Thermal module
◆ Router
thermal pad application

Videos

Click here！

Product Parameters

SR600-10
Item	Test	Test method
Protective film color	Black	Visual
Total thickness （mm)	0.13±0.02	ASTM D374
Composition	Natural graphite	***
Insulating adhesive tape	Optional	***
Density (g/cm3)	1.5±0.05	ASTM D792
Thermal Conductivity (W/m.k)	300-500	ASTM E1461
Graphite content	≥99%	***
Tensile Strength（MPa)	≥3.0	***
RoHS	PASS	IEC 62321
Halogen	PASS	EN14582
REACH	PASS	EN14372

SR series Graphite Sheet
Sheen Graphite Sheet	Thermal conductivity@XY(W/m.k)	Thermal conductivity@Z(W/m.k)	Toatal thickness	Ingredient	Insulating adhesive
SR600-A-W	1500	>30	0.065±0.003	White PET film，graphite	Yes
