Product Description

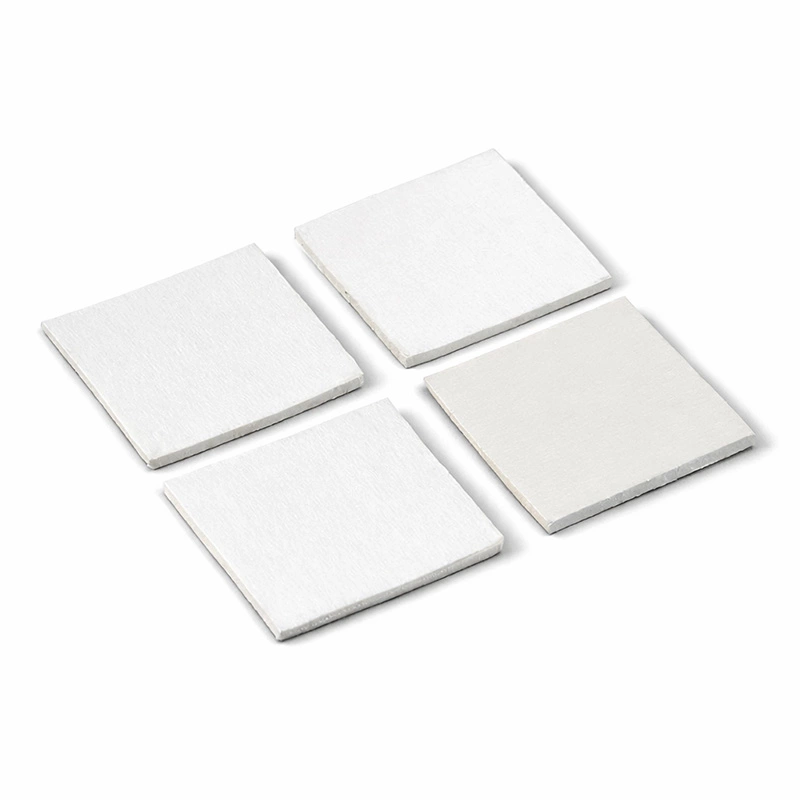

SHEEN's BSF1600 series Boron Nitride Thermal Pads are renowned for their outstanding performance characteristics, which include:
◆ Exceptional thermal conductivity options ranging from 8 to 20 W/mK.
◆ Available in various thicknesses from 0.3 to 0.7 mm.
◆ Excellent flame retardancy.
◆ High compressibility, flexibility, and elasticity ideal for low-pressure applications.
◆ Low thermal resistance.
◆ Customizable shapes according to client requirements.
◆ Compliant with RoHS, Halogen, REACH environmental and safety standards.
◆ Excellent flexibility, resilience, and thermal stability.
◆ Exceptional thermal conductivity options ranging from 8 to 20 W/mK.
◆ Available in various thicknesses from 0.3 to 0.7 mm.
◆ Excellent flame retardancy.
◆ High compressibility, flexibility, and elasticity ideal for low-pressure applications.
◆ Low thermal resistance.
◆ Customizable shapes according to client requirements.
◆ Compliant with RoHS, Halogen, REACH environmental and safety standards.
◆ Excellent flexibility, resilience, and thermal stability.
【Applications】
◆ Vehicle navigator
◆ Communication & power equipment
◆ Graphics card, memory module
◆ LED lighting equipment
◆ LCD and plasma TV
Properties
| Properties | Unit | BSF1600-03（0.3mm） | Test Method |
| Color | - | White | Visual |
| Thermal Conductivity | W/m·K | ≥15（linear fitting） | ASTM D5471 |
| Thermal Impedance (@40psi) | ℃*in2/W | ≤0.06 | ASTM D5470 |
| Thickness | mm | 0.3 | ASTM D374 |
| Density | g/cm³ | 1.6±0.2 | ASTM D792 |
| Hardness | Shore 00 | 60~80 | ASTM D2240 |
| Breakdown voltage | KV,@AC | ≥3.5 | ASTM D149 |
| Dielectric constant | F/m, @ 1MHz | ≤4.2 | ASTM D150 |
| Flammability rating | - | V-0 | UL 94 |
| RoHS | - | PASS | IEC 62321 |
| Halogen | - | PASS | EN 14582 |
| REACH | - | PASS | EN 14372 |
【Product Specifications】
Sheet products: 110*60mm or CustomizedDie-cut products: Customized
【Storage & Transportation】
Store in a well-ventilated, cool, and dry area. Keep away from open flames.This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】
Customized packaging according to customer requirements.【Shelf Life】
12 months.Not sure whether boron nitride is the right material for your power electronics or optical module application? Read our application guide on boron nitride thermal management.
