  • SP205A-60 Phase Change Thermal pad 6.0W/mK
    • Flexible Thermal Conductive Phase Change Material Providing Excellent Surface Conformability Flexible Thermal Conductive Phase Change Material Providing Excellent Surface Conformability

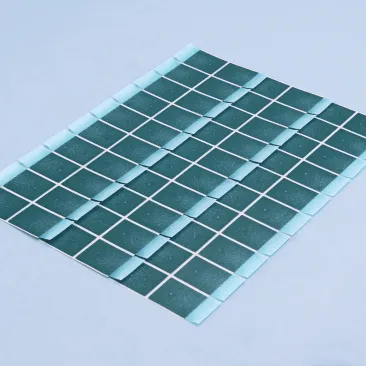

    Thermal Conductive Phase Change Material Designed For Electronics And Power Modules Thermal Conductive Phase Change Material Designed For Electronics And Power Modules

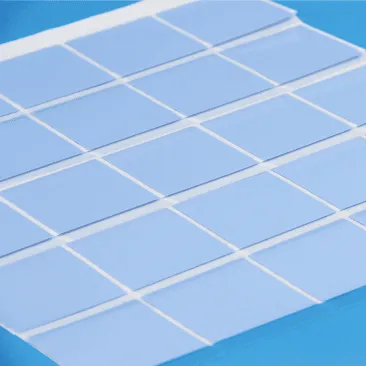

    Thermal Conductive Phase Change Material With Excellent Gap Filling And Vibration Damping Thermal Conductive Phase Change Material With Excellent Gap Filling And Vibration Damping
    High-Performance Thermal Conductive Phase Change Material Suitable For Industrial And Automotive Applications High-Performance Thermal Conductive Phase Change Material Suitable For Industrial And Automotive Applications

    SP205A-60 Phase Change Thermal pad 6.0W/mK

    Use Range:
    SP205A-60 6.0 W/m·K Phase Change Thermal Pads are solid at room temperature and feature self-adhesive properties for easy handling. When the temperature reaches the phase change range of 45–55℃, the pads soften and transition to a liquid state. Delivering wet-out performance comparable to thermal paste, they effectively fill gaps between heat sinks and electronic components. Custom die-cut into any shape per customer requirements, these pads offer convenience, high reliability and straightforward application.

    Free Samples
    To request a sample of our Phase Change Thermal Pads or inquire about more product information, please email us at sales3@u-sheen.com or Click here.


    Product Description

    SHEEN's SP Series Phase Change Thermal Pads are renowned for their outstanding performance characteristics, which include:
    ◆ Excellent thermal conductivity, with ranging from 1.8 to 6.0 W/m·K.
    ◆ Low thermal impedance, reaching as low as 0.015 ℃*in²/W at 50psi, ensuring efficient heat transfer.
    ◆ Excellent wetting properties ensure that there is no risk of spillage after thermal cycling, making them a reliable alternative to thermal grease/thermal paste.
    ◆ Self-adhesive design for easy application and rework.
    ◆ Compliant with RoHS, Halogen-Free, and REACH environmental and safety standards.

    【Applications】

    ◆ CPU/GPU Chips
    ◆ Capacitors
    ◆ Memory/VRAM particles
    ◆ Control boards
    ◆ Splitters
    ◆ Relays


    Properties

    Properties SP205A-60 Test Method
    Color Gray Visual
    Thermal Conductivity (W/mK) 6.0 ASTM D5470
    Thermal Impedance (@50psi) 0.015 ASTM D5470
    Thickness (mm) 0.3 ASTM D751
    Customized Thickness (mm) 0.2 ~ 0.5 -
    Thickness Tolerance ±10% -
    Density (g/cm3) 3.0 ASTM D792
    Phase Change Temp. (°C) 45 ~ 55 -
    Operating Temp. (°C) -40 ~ 125 -
    Dielectric Constant (@1MHz) 5.0 ASTM D150
    Volume Resistivity (Ω·m) 1.0 × 1011 ASTM D257
    RoHS PASS IEC 62321
    Halogen PASS EN 14582
    REACH PASS EN 14372

    【Product Specifications】

      Customized according to customer requirements.


    【Storage & Transportation】

      Store in a well-ventilated, cool, and dry area, away from open flames.
      This product is non-toxic and should be stored and transported as a non-hazardous material.


    【Packaging】

      Customized packaging according to customer requirements.


    【Shelf Life】

      12 months
