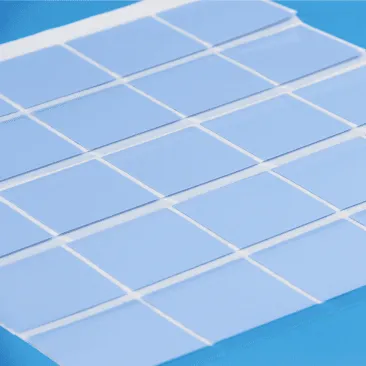

    Phase Change Thermal Material With Low Compression Set And Excellent Reliability Phase Change Thermal Material With Low Compression Set And Excellent Reliability
    Industrial Grade Phase Change Thermal Material Suitable For Automotive And Power Electronics Industrial Grade Phase Change Thermal Material Suitable For Automotive And Power Electronics
    Phase Change Thermal Material Providing Efficient Gap Filling And Vibration Damping Phase Change Thermal Material Providing Efficient Gap Filling And Vibration Damping

    SP205A-AL-40 Phase Change Thermal pad 4.0W/mK

    Use Range:
    SP205A-AL-40 4.0 W/m·K Phase Change Thermal Pads are Aluminum Foil reinforced, can be used for filling gaps between heat sinks and electronic components and transferring heat. They offer good wet-out performance and low thermal impedance, so effectively exclude air from the contact interface. The products are naturally tacky, can be die-cut into various shapes, easy to operate.

    Free Samples
    To request a sample of our Phase Change Thermal Pads or inquire about more product information, please email us at tina@u-sheen.com or Click here.


    Product Description

    The SHEEN's SP Series Phase Change Thermal Pads are renowned for their distinctive characteristics, which include:
    ◆ Good thermal conductivity, with options ranging from 1.8 to 6.0 W/m·K.
    ◆ Low thermal impedance, reaching as low as 0.015 ℃*in²/W at 50psi, ensuring efficient heat transfer.
    ◆ Excellent wetting properties ensure that there is no risk of spillage after thermal cycling, making them a viable alternative to thermal grease/thermal paste.
    ◆ Self-adhesive for easy application and rework.
    ◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.


    【Applications】

    ◆ CPU/GPU Chips
    ◆ Capacitors
    ◆ Memory/VRAM particles
    ◆ Control boards
    ◆ Splitters
    ◆ Relays


    Properties

    Properties SP205A-AL-40 Test Method
    Color Gray Visual
    Reinforcement Carrier Aluminum Foil -
    Thermal Conductivity (W/mK) 4.0 ASTM D5470
    Thermal Impedance (@50psi) 0.04 ASTM D5470
    Thickness (mm) 0.18 ASTM D751
    Density (g/cm3) 1.8 ASTM D792
    Phase Change Temp. (°C) 50 ~ 60 -
    Operating Temp. (°C) -40 ~ 125 -
    Dielectric Constant (@1MHz) 2.3 ASTM D150
    Volume Resistivity (Ω·m) 1.0 × 1011 ASTM D257
    RoHS PASS IEC 62321
    Halogen PASS EN 14582
    REACH PASS EN 14372

    【Product Specifications】

      According to Customers’Requirements


    【Storage & Transportation】

      Store in a well-ventilated, cool, and dry place, away from open flames.
      This product is non-toxic and should be stored and transported as a non-hazardous material.


    【Packaging】

      Customized packaging according to customer requirements.


    【Shelf Life】

      12 months
