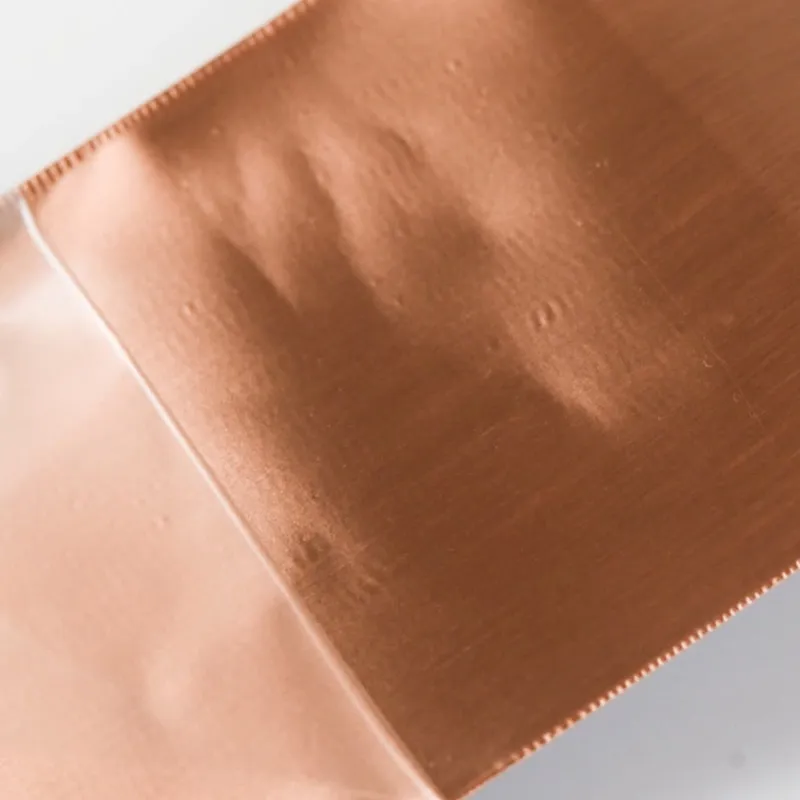

SU006-1/2 Carbon-coated Copper Foil
Use Range:
SU006-1/2 Carbon-coated Copper Foil serves as an effective thermal conduction path between the heating element and the heat sink. Together with the heat sink and the structural fixing member (fan), it forms a complete heat dissipation module.
Product Description
Applications
◆ Communication equipment
◆ Electric appliance
◆ LED lighting equipment
Videos
For more details, please click on the following website.
https://www.youtube.com/watch?v=Xai2UnokBB8
Product Parameters
| SU006-1/2 | ||
| Item | Test | Test method |
| Copper foil thickness （mm) | 0.035±0.005 | ASTM D374 |
| Coating thickness （mm) | 0.003±0.001 | ASTM D374 |
| Total thickness （mm) | 0.06±0.005 | ASTM D374 |
| Proportion （g/cm3) | 7.70±0.50 | ASTM D792 |
| Temperature range （℃） | -40-200 | *** |
| Thermal Conductivity （W/m-K） | 400 | ASTM D5470 |
| Resistance （Ω.cm) | ≤0.02 | ASTM D257 |
| Adhesion （kgf/inch) | >0.6 | GB/T 2792-1998 |
| Printability | Nano carbon coating | *** |
| Width （mm) | 380mm;500mm;600mm | Base of copper substrate |
| Length （M) | 50M/ volume | *** |
| RoHS | PASS | IEC 62321 |
| Halogen | PASS | EN14582 |
| REACH | PASS | EN14372 |
| SU series Carbon-coated Copper Foil | |||
| Carbon-coated Copper Foil | Thermal conductivity@XY(W/m.k) | Printability | Toatal thickness(mm) |
| SU004-1/2 | 400 | Nano carbon coating | 0.04±0.005 |
| SU005-1/2 | 400 | Nano carbon coating | 0.05±0.005 |
| SU006-1/2 | 400 | Nano carbon coating | 0.06±0.005 |
| SU010-1/2 | 400 | Nano carbon coating | 0.085±0.005 |
| SU085-1/2 | 400 | Nano carbon coating | 0.10±0.005 |
