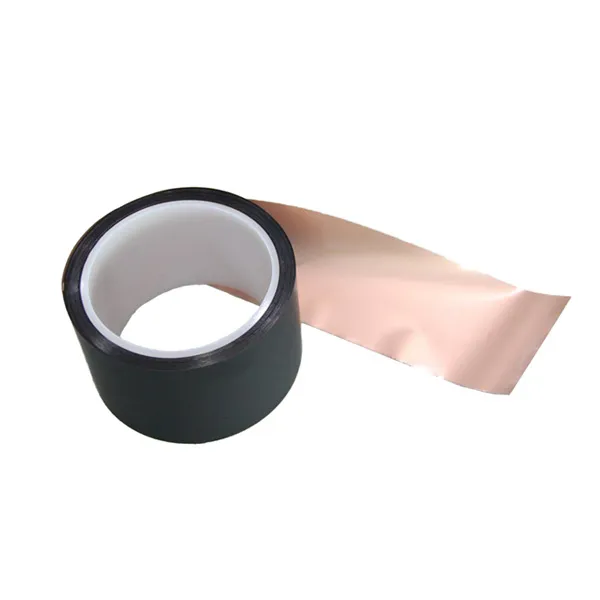

  • Copper Carbon Tape Copper Carbon Tape
    Copper Carbon foil Copper Carbon foil
    Nano copper carbon tape Nano copper carbon tape

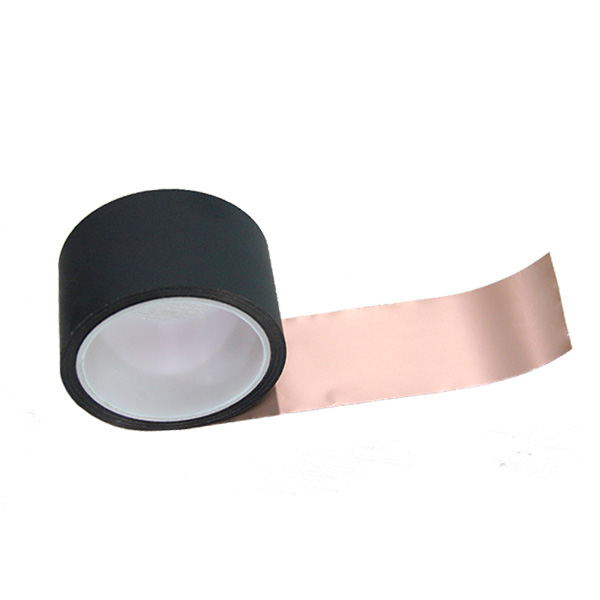

    Carbon-coated Copper Foil Series

    Use Range:
    Carbon-coated Copper Foil Series acts as a heat conduction device, forming a good heat conduction path between the heating element and the heat sink member, and forming a heat dissipation module together with the heat sink and the structural fixing member (fan).

    Free Samples

    Product Description



    Nano Carbon-coated Copper Foil acts as a heat conduction device, forming a good heat conduction path between the heating element and the heat sink member, and forming a heat dissipation module together with the heat sink and the structural fixing member (fan).

    Applications



    ◆ Computer, web server
    ◆ Communication equipment
    ◆ Electric appliance
    ◆ LED lighting equipment

      thermal pad application

    Videos




    Product Parameters




     Carbon-coated Copper Foil
    Grade ltem SU004-1/2  SU005-1/2 SU006-1/2 SU010-1/2 SU085-1/2
    Item Test Test Test Test Test Test method
    Copper foil thickness (mm) 0.025±0.005 0.035±0.005 0.035±0.005 0.05±0.005 0.05±0.005 ASTM D374
    Coating thickness (mm) 0.003±0.001 0.003±0.001 0.003±0.001 0.03±0.001 0.03±0.001 ASTM D374
    Total thickness (mm) 0.04±0.005 0.05±0.005 0.06±0.005 0.10±0.005 0.085±0.005 ASTM D792
    Proportion (g/cm3) 7.70±0.50 7.70±0.50 7.70±0.50 7.70±0.50 7.70±0.50 ***
    Temperature range (℃) -40-200 -40-200 -40-200 -40-200 -40-200 ASTM D5470
    Thermal Conductivity
    (W/m-K)
    400 400 400 400 400 ASTM D257
    Resistance (Ω.cm) ≤0.02 ≤0.02 ≤0.02 ≤0.02 ≤0.02 GB/T 2792-1998
    Adhesion (kgf/inch) >0.6 >0.6 >0.6 >0.6 >0.6 ***
    Printability Nano carbon coating Nano carbon coating Nano carbon coating Nano carbon coating Nano carbon coating Base of copper substrate
    Width (mm) 380mm;500mm;600mm 380mm;500mm;600mm 380mm;500mm;600mm 380mm;500mm;600mm 380mm;500mm;600mm ***
    Length (M) 50M/ volume 50M/ volume 50M/ volume 50M/ volume 50M/ volume IEC 62321
    RoHS  PASS PASS PASS PASS PASS EN14582
    Halogen PASS PASS PASS PASS PASS EN14372

    Customization Ability
