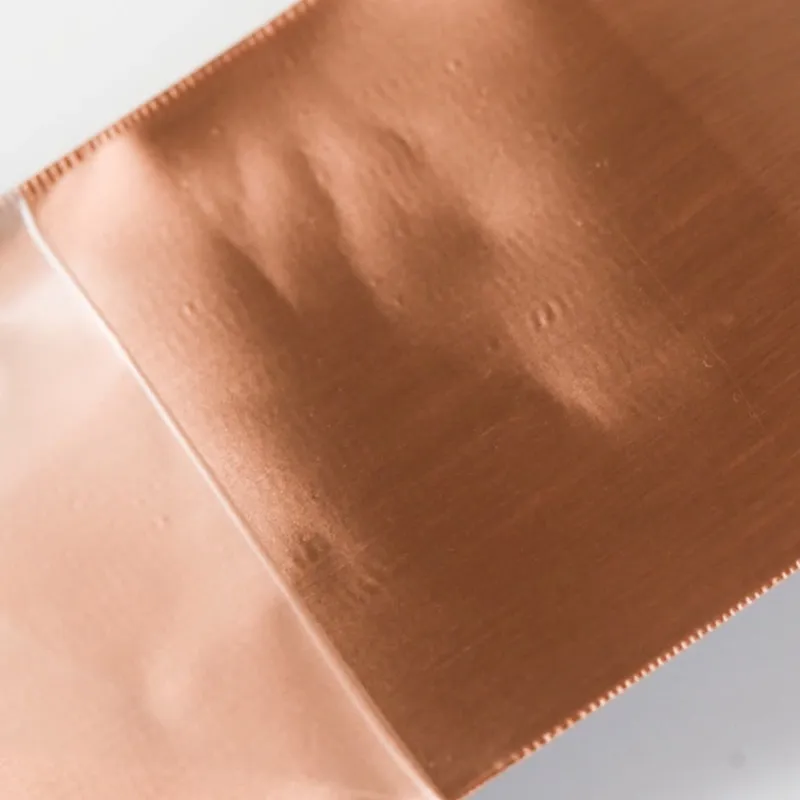

SU010-1/2 Carbon-coated Copper Foil

Use Range:
SU010-1/2 Carbon-coated Copper Foil acts as a heat conduction device, forming a good heat conduction path between the heating element and the heat sink member, and forming a heat dissipation module together with the heat sink and the structural fixing member (fan).

Free Samples

Detailed Information

Product Description

SU010-1/2 Carbon-coated Copper Foil, forming a good heat conduction path between the heating element and the heat sink member, and forming a heat dissipation module together with the heat sink and the structural fixing member (fan).

Applications

◆ Computer, web server
◆ Communication equipment
◆ Electric appliance
◆ LED lighting equipment
thermal pad application

Videos

Product Parameters

SU010-1/2
Item	Test	Test method
Copper foil thickness （mm)	0.05±0.005	ASTM D374
Coating thickness （mm)	0.03±0.001	ASTM D374
Total thickness （mm)	0.10±0.005	ASTM D374
Proportion （g/cm3)	7.70±0.50	ASTM D792
Temperature range （℃）	‘-40-200	***
Thermal Conductivity （W/m-K）	400	ASTM D5470
Resistance （Ω.cm)	≤0.02	ASTM D257
Adhesion （kgf/inch)	>0.6	GB/T 2792-1998
Printability	Nano carbon coating	***
Width （mm)	380mm;500mm;600mm	Base of copper substrate
Length （M)	50M/ volume	***
RoHS	PASS	IEC 62321
Halogen	PASS	EN14582
REACH	PASS	EN14372

SU series Carbon-coated Copper Foil
Carbon-coated Copper Foil	Thermal conductivity@XY(W/m.k)	Printability	Toatal thickness(mm)
SU004-1/2	400	Nano carbon coating	0.04±0.005
SU005-1/2	400	Nano carbon coating	0.05±0.005
SU006-1/2	400	Nano carbon coating	0.06±0.005
SU010-1/2	400	Nano carbon coating	0.085±0.005
SU085-1/2	400	Nano carbon coating	0.10±0.005
